Cam & Groove Type fittings are available in a variety of materials;
including Ductile Iron, Stainless Steel, Aluminum, Brass as well as Glass Reinforced Polypropylene.
Due to the proprietary nature of these products, we are unable to provide detailed dimension information.

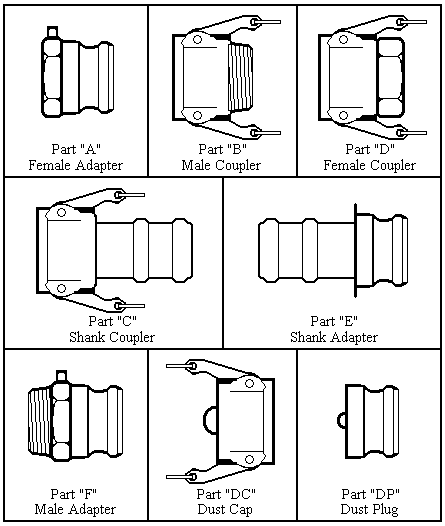

The various types of Cam & Groove Fittings available.
Cam & Groove Fittings are designed to conform with the following industry standards:
|Materials:||ASTM A-351 CF8M||Cast 316|
| ||ASTM B-26 6061T6||Aluminum|
| ||ASTM B-62 C-83600 ||Brass|
| ||ASTM A-356||Ductile Iron|
| ||ASTM Not Available||Glass Reinforced Polypropylene|
|Dimensions: ||Largely Conform to|| |
| ||U.S.A. MIL C-24787|| |
All fittings shall be threaded with American National Standard Pipe Threads (ANSIB1.20.1) and shall have tapered threads.
